GATE 2017 EE – Question 34

Power Electronics · Single-phase and three-phase voltage and current source inverters, sinusoidal pulse width modulation · 1 mark · Numerical answer

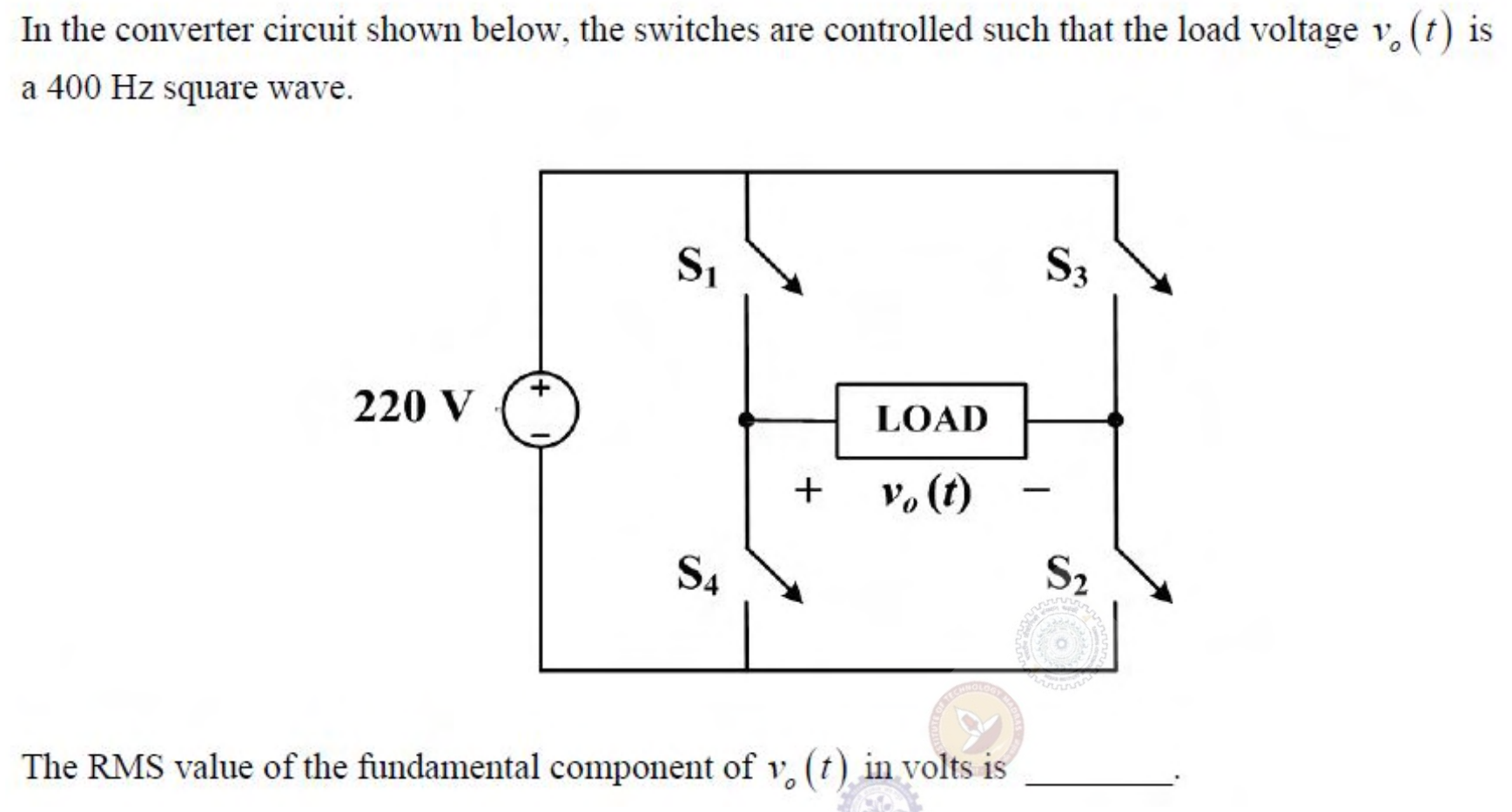

In the converter circuit shown below, the switches are controlled such that the load voltage $v_o(t)$ is a 400 Hz square wave.

The RMS value of the fundamental component of $v_o(t)$ in volts is ________.

Diagram for GATE 2017 EE question 34

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: 196 to 200

Explanation

A full bridge producing a square wave of amplitude 220 V has a fundamental of peak $\frac{4 \times 220}{\pi} = 280.1$ V. The rms value is $\frac{280.1}{\sqrt{2}} = 198$ V.
