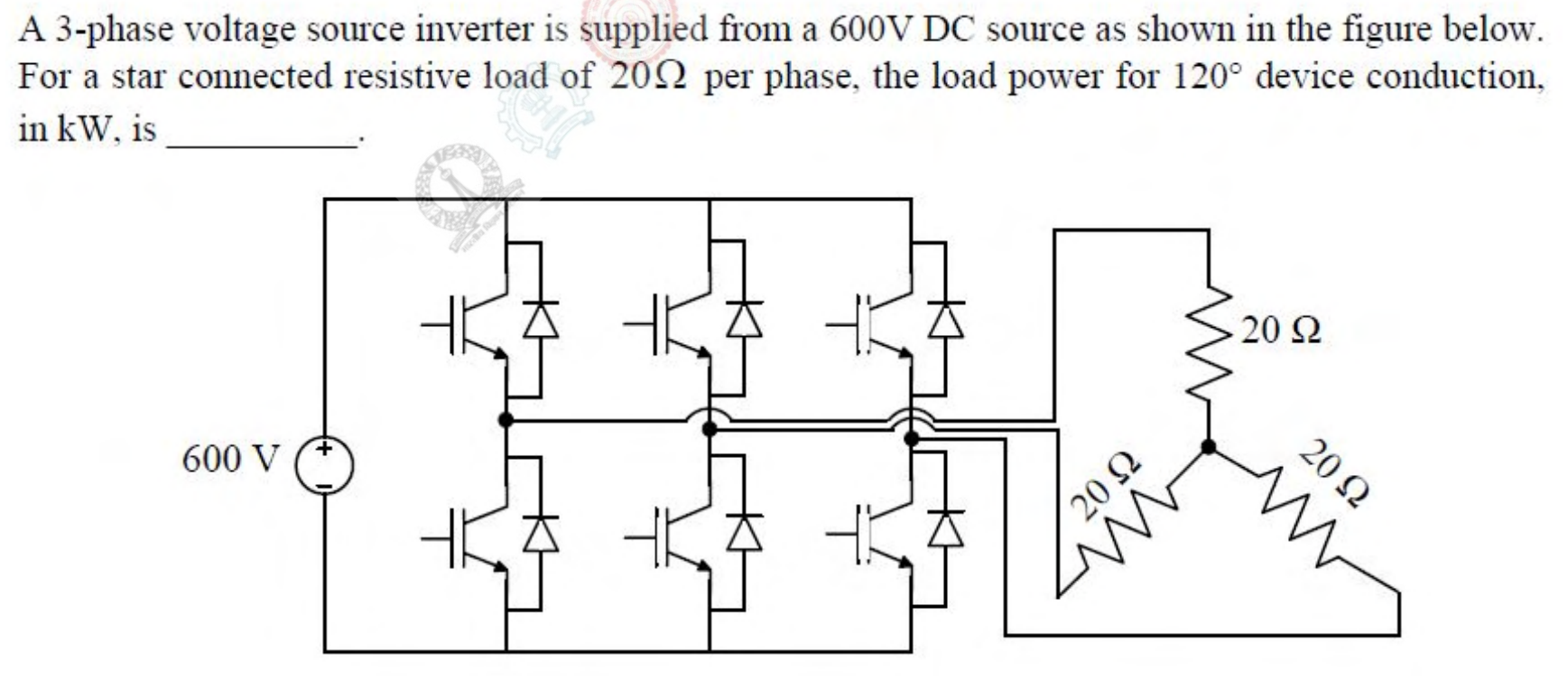

A 3-phase voltage source inverter is supplied from a 600 V DC source as shown in the figure below. For a star connected resistive load of 20 $\Omega$ per phase, the load power for 120° device conduction, in kW, is ________.
With 120° conduction, two of the three phases conduct at any instant, and the two resistors are in series across the 600 V supply. The current is $\frac{600}{2 \times 20} = 15$ A. The power is $15^2 \times 40 = 9000$ W, which is 9 kW.
