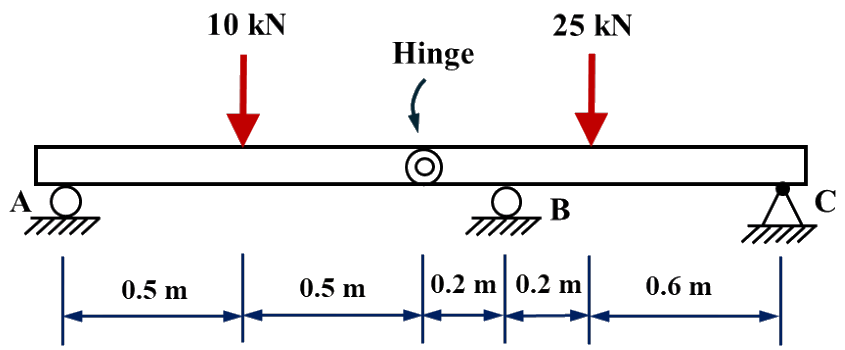

Two structural members are connected by a hinge and they are externally loaded as shown in the figure below. A and B are roller supports, and C is a pin support. Neglecting the mass of the members, the magnitude of the vertical reaction force at C in kN is
Measure from A: the 10 kN load is at 0.5 m, the hinge at 1.0 m, support B at 1.2 m, the 25 kN load at 1.4 m and support C at 2.0 m. The bending moment at the hinge is zero. For the left part, taking moments about the hinge gives $R_A \times 1.0 = 10 \times 0.5$, so $R_A = 5$ kN, and the hinge passes 5 kN downward onto the right part. For the right part, taking moments about B gives $-5(0.2) + 25(0.2) - R_C(0.8) = 0$, so $R_C = 5$ kN.
