GATE 2024 CS (CS1) – Question 10

General Aptitude · Spatial Aptitude: Spatial Reasoning and Visualization · 2 marks · Multiple choice

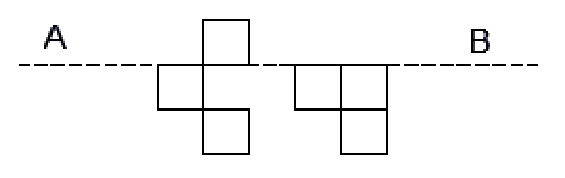

The least number of squares to be added in the figure to make AB a line of symmetry is

Diagram for GATE 2024 CS (CS1) question 10
  1. 6
  2. 4
  3. 5
  4. 7

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: (A) 6

Explanation

For every occupied square, locate its mirror position across AB at the same perpendicular distance on the other side. A symmetric union must contain that mirror square.

The six existing squares have six distinct missing mirror partners: four above AB and two below. Add those partners and every square is paired, so six additions suffice. Because each currently occupied square needs its missing partner, fewer than six cannot work.

The minimum is **6, A**. Reflection pairs should be counted by positions, not by the appearance of the combined stepped outline.
