GATE 2022 CS – Question 10

General Aptitude · Spatial Aptitude: Spatial Reasoning and Visualization · 2 marks · Multiple choice

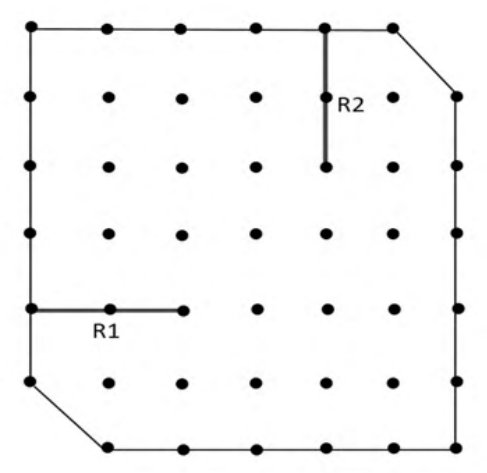

A plot of land must be divided between four families. They want their individual plots to be similar in shape, not necessarily equal in area. The land has equally spaced poles, marked as dots in the below figure. Two ropes, R1 and R2, are already present and cannot be moved.
What is the least number of additional straight ropes needed to create the desired plots? A single rope can pass through three poles that are aligned in a straight line.

Diagram for GATE 2022 CS question 10
  1. 2
  2. 4
  3. 5
  4. 3

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: (D) 3

Explanation

Use the equally spaced poles as coordinates, with the top-left pole at (0,0) and the bottom-right pole at (6,6). R1 ends at (2,4), and R2 ends at (4,2).

Add three straight ropes: (2,4) to (2,6), (4,2) to (6,2), and (2,4) to (4,2). Each passes through at most three aligned poles.

This makes four similar pentagons: two come from 2-by-2 squares with a 1-by-1 triangular corner cut off; the other two are scaled copies from 4-by-4 squares with a 2-by-2 triangular corner cut off.

Two ropes cannot complete both loose ends and also separate the remaining central region into the two required similar plots. Thus the least number is **3, option D**, matching the official key.
