GATE 2024 EC – Question 9

General Aptitude · Spatial Aptitude: Spatial Reasoning and Visualization · 2 marks · Multiple choice

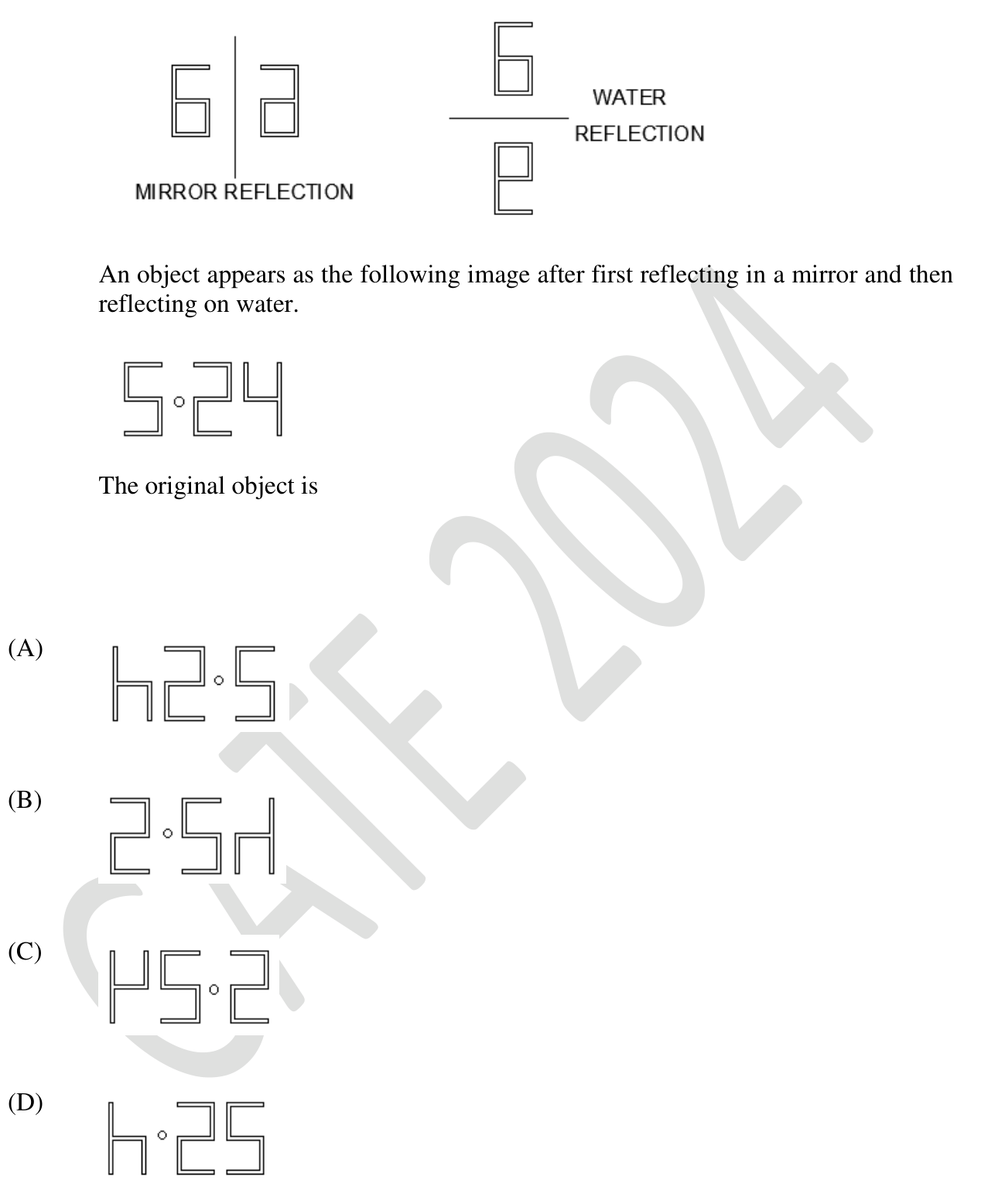

Examples of mirror and water reflections are shown in the figures below:

An object appears as the following image after first reflecting in a mirror and then reflecting on water.

The original object is

Diagram for GATE 2024 EC question 9
  1. Object (A)
  2. Object (B)
  3. Object (C)
  4. Object (D)

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: (A) Object (A)

Explanation

A mirror reflection flips the object left-to-right and a water reflection flips it top-to-bottom. Doing both is a rotation by 180°, in either order. So the original is the shown image rotated by 180°: the characters appear in reverse order and each is turned upside down. The "4" becomes "h", "2" and "5" map onto themselves in this digit style, and the dot stays, giving "h2.5", which is option (A).
