GATE 2026 EC – Question 3

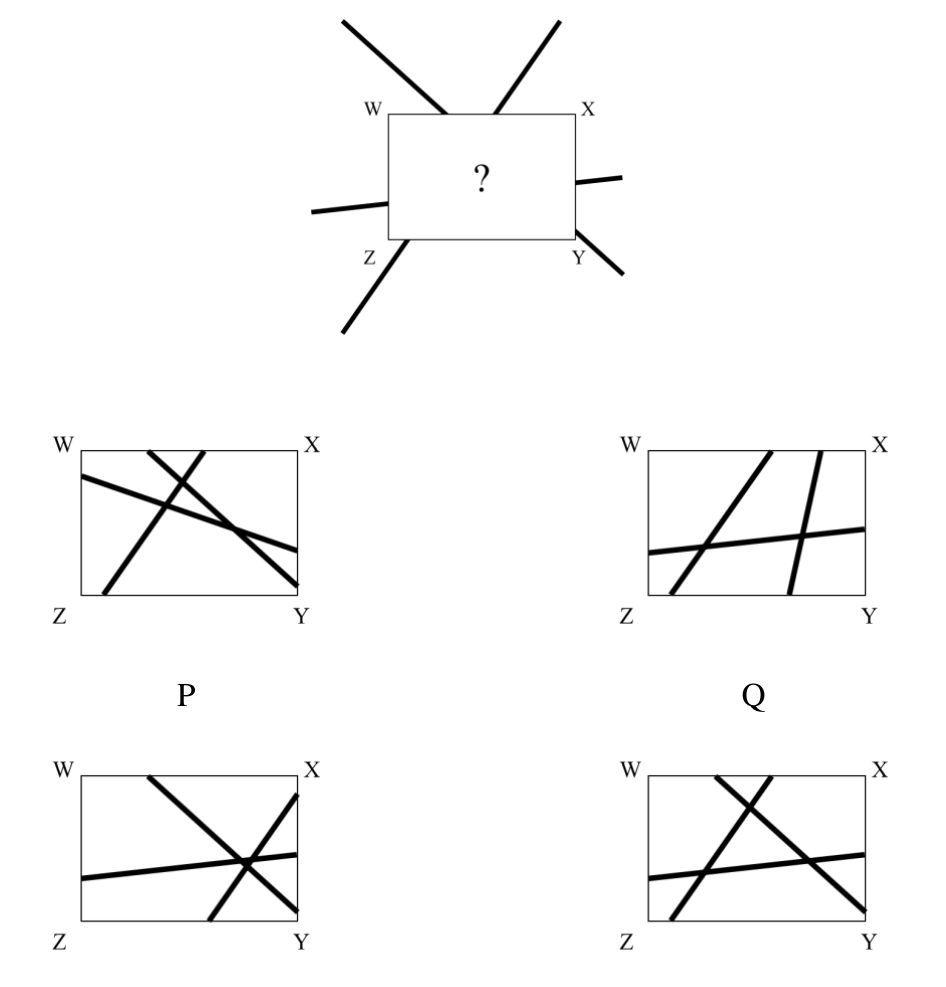

The figure below has exactly three intersecting line segments with a rectangular portion WXYZ missing. Which one of the following options P, Q, R, and S is the missing portion WXYZ?
Practise this question in The GATE Grind →
Show answer and explanation
Correct answer: (D) S
Explanation
Matching the stubs at the edges: one line runs from the top edge down-right to the right edge near Y, one runs from the bottom edge near Z up-right to the top edge, and one is nearly horizontal from the left edge to the right edge. These give three separate pairwise intersections, which only option S shows.
