GATE 2021 CH – Question 40

Instrumentation and Process Control · Measurement of process variables, sensors, transducers and P&ID symbols · 2 marks · Multiple choice

Which of these symbols can be found in piping and instrumentation diagrams?

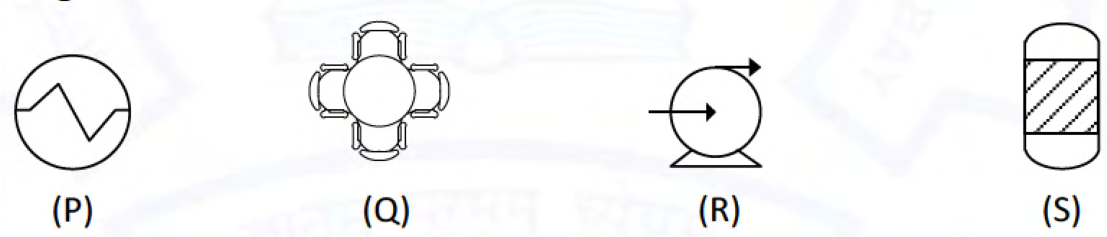

P is a circular heat-exchanger symbol, Q a multihead positive-displacement pump symbol, R a centrifugal-pump symbol, and S a packed vessel symbol.
  1. (Q) and (S) only
  2. (P), (Q) and (R) only
  3. (P), (R) and (S) only
  4. (P), (Q), (R) and (S)

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: (D) (P), (Q), (R) and (S)

Explanation

P&IDs include equipment symbols as well as instrument bubbles and connecting pipelines. P is a heat-exchange device; Q represents a positive-displacement pumping device; R is a centrifugal pump; and S represents a vessel with internal packing.

None of the four is excluded simply because it denotes process equipment rather than a measurement instrument. All four can appear in a P&ID. **Answer: D.**
