GATE 2021 CE (CE2) – Question 30

Structural Analysis · Principle of superposition, virtual work and Castigliano theorem · 1 mark · Numerical answer

A 4 m propped cantilever has an internal hinge at its midpoint and carries 10 kN/m throughout. Find vertical reaction at fixed end X in kN (integer).

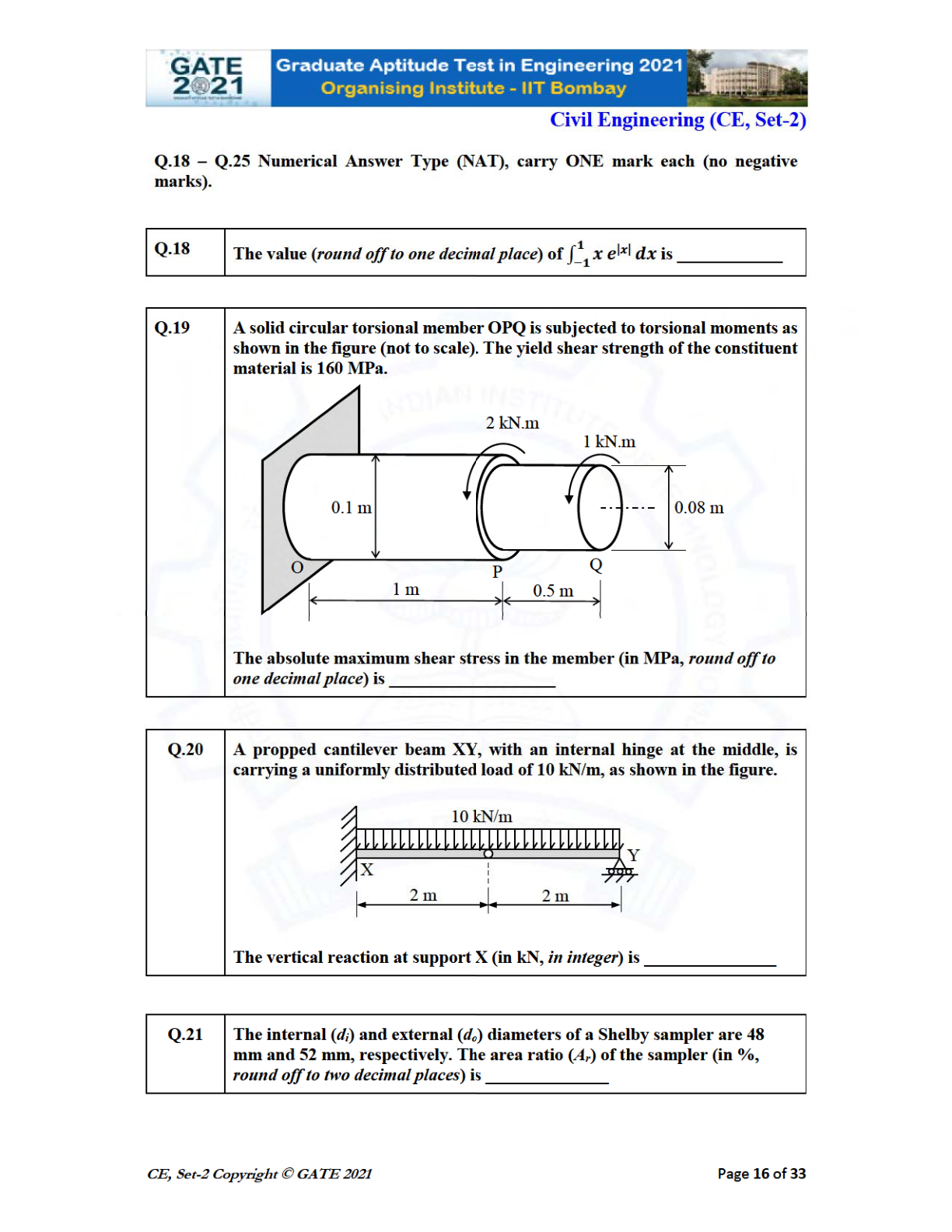

the source diagram and labels are reproduced in the attached image.

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: 30 to 30

Explanation

The right 2 m span is simply supported between the hinge and prop, so its reactions are 10 kN each. The left cantilever therefore carries its own 20 kN UDL plus the 10 kN downward hinge force. Vertical equilibrium gives **RX=30 kN** upward.
