GATE 2019 CE (CE1) – Question 15

Structural Analysis · Principle of superposition, virtual work and Castigliano theorem · 1 mark · Multiple choice

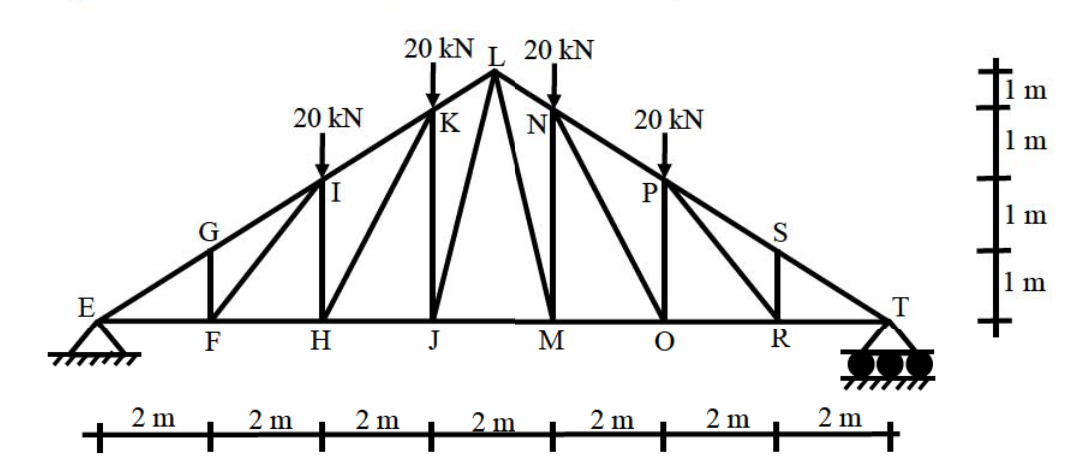

The plane truss is shown, not to scale. Which option contains ONLY zero-force members?

Diagram for GATE 2019 CE (CE1) question 15
  1. FG, FI, HI, RS
  2. FG, FH, HI, RS
  3. FI, HI, PR, RS
  4. FI, FG, RS, PR

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: (D) FI, FG, RS, PR

Explanation

At unloaded G,the two sloping chord members are collinear,so FG=0. At F,the horizontal chord members are collinear and FG is zero,forcing FI=0. Similarly,unloaded S gives RS=0,and then joint R forces PR=0. Thus **FI,FG,RS,PR,D**.
