GATE 2019 CE (CE2) – Question 30

Structural Analysis · Statically indeterminate structures: force and displacement methods · 1 mark · Numerical answer

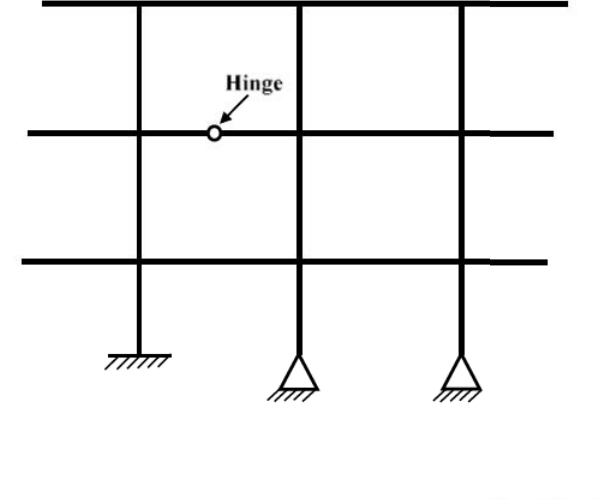

Find the degree of static indeterminacy of the plane frame shown.

Diagram for GATE 2019 CE (CE2) question 30

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: 15 to 15

Explanation

Count the unreleased frame with m = 21 member segments, j = 18 joints and r = 7 support reactions. Its static indeterminacy is $3m+r-3j=63+7-54=16$. The internal hinge releases one moment constraint, leaving **15**.
