GATE 2017 CE (CE2) – Question 24

Structural Analysis · Statically indeterminate structures: force and displacement methods · 1 mark · Multiple choice

If axial and shear deformations in the frame members shown are negligible, the reduction in kinematic indeterminacy is ______.

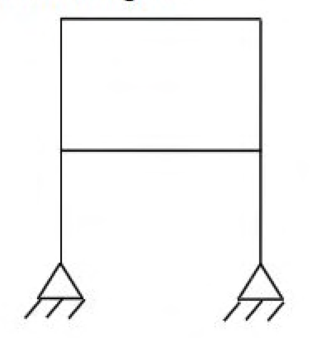

Diagram for GATE 2017 CE (CE2) question 24
  1. 5
  2. 6
  3. 7
  4. 8

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: (B) 6

Explanation

Before axial constraints, four free joints supply eight translations and four rotations; the two pinned bases add two rotations, for 14 coordinates. Inextensible columns remove four vertical translations. Each of the two inextensible beams ties a pair of horizontal translations, removing two more coordinates. Eight remain (six rotations and two sways), so the requested reduction is 14 − 8 = 6 (B).
