GATE 2022 CY – Question 31

Physical Chemistry · Phase Equilibria: Phase rule. Clausius- Clapeyron equation. Phase diagram of one component system: CO2, H2O, S; two component systems: liquid-vapor, liquid-liquid and solid-liquid systems. Fractional distillation. Azeotropes and Eutectics. · 1 mark · Multiple select

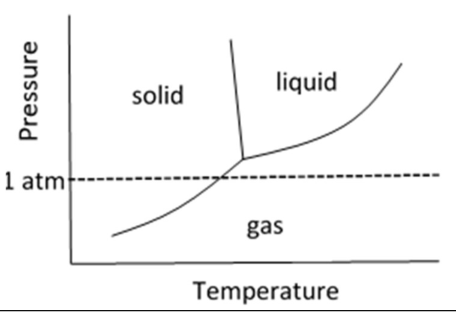

The CORRECT statement(s) about the following phase diagram for a hypothetical pure substance X is(are)

Diagram for GATE 2022 CY question 31
  1. The molar volume of solid X is less than the molar volume of liquid X
  2. X does not have a normal boiling point
  3. The melting point of X decreases with increase in pressure
  4. On increasing the pressure of the gas isothermally, it is impossible to reach solid phase before reaching liquid phase

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: (B) X does not have a normal boiling point; (C) The melting point of X decreases with increase in pressure

Explanation

The triple-point pressure is above 1 atm, so the 1-atm line never reaches liquid–vapour equilibrium: there is no normal boiling point, B. The negative melting-line slope means melting temperature decreases as pressure increases, C. Clapeyron then implies liquid volume is smaller than solid volume, contradicting A. Below the triple-point temperature, compression can reach solid directly, so D is false. **B, C**.
