GATE 2024 IN – Question 9

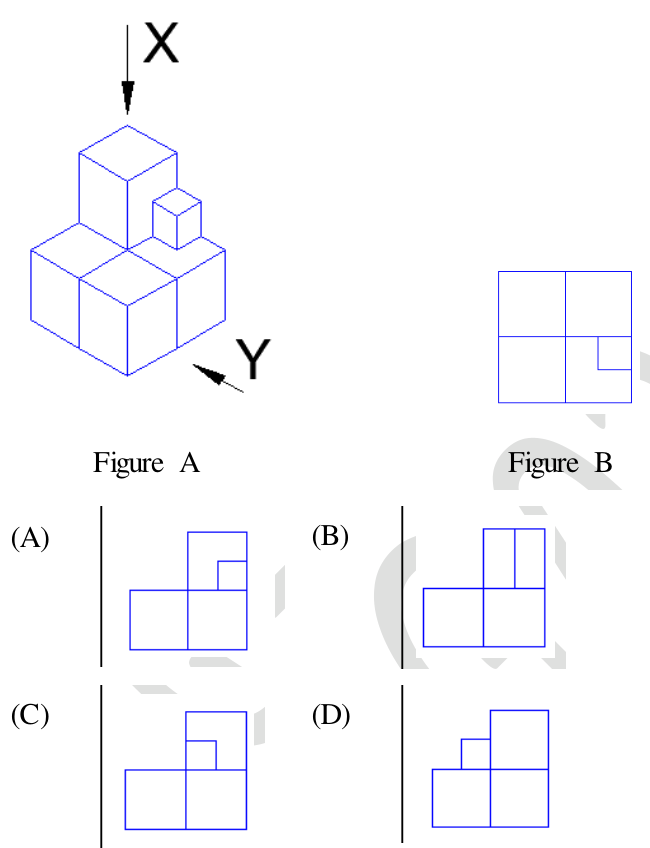

Five cubes of identical size and one smaller cube are assembled as shown in Figure A. Viewed from direction X, their planar image is Figure B. Which planar image is obtained when the assembly is viewed from direction Y? The four candidate projections are labelled A–D in the image.
Practise this question in The GATE Grind →
Show answer and explanation
Correct answer: (A) Projection A
Explanation
Looking along Y collapses depth to give two large squares along the bottom and one above the right square.
The smaller cube projects onto the lower-right corner of that upper square, giving the internal small-square outline shown in **A**.
Its position rules out the other projections.
