For the feedback control system shown, the steady-state error e ss= t[r(t)-y(t)] due to a unit-step reference r(t) is

GATE 2024 IN – Question 44

Control Systems · Time response and steady-state error · 2 marks · Multiple choice

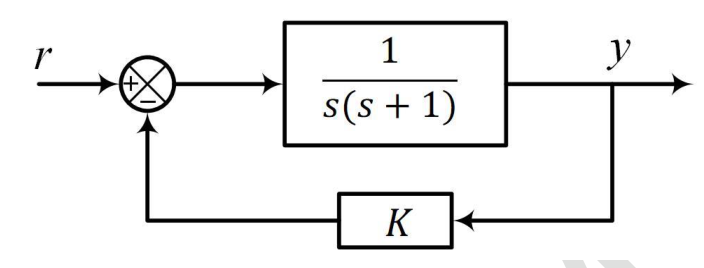

For the feedback control system shown, the steady-state error $e_{ss}=\lim_{t\to\infty}[r(t)-y(t)]$ due to a unit-step reference $r(t)$ is

$(K-1)/K$
$1/2$
0
$(1-K)/K$

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: (A) $(K-1)/K$
