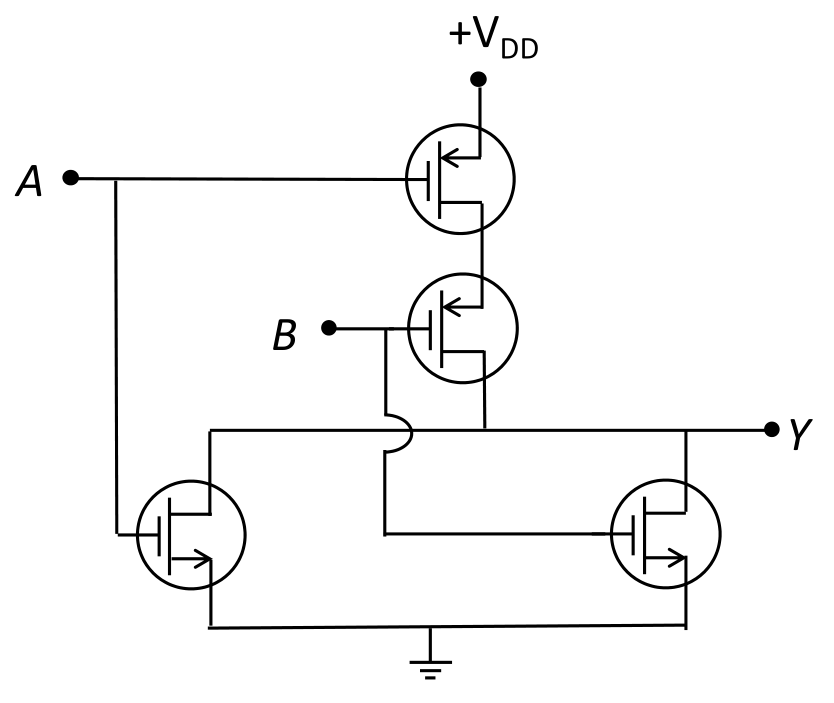

In the circuit shown in the Figure, $A$ and $B$ are logic inputs and $Y$ is the logic output. Which of the following logic operations is realized by the circuit?
The two series PMOS transistors conduct (pulling $Y$ up to $V_{DD}$) only when both gates are low, $A=B=0$. The two parallel NMOS transistors pull $Y$ to ground when either gate is high.
So $Y=1$ only if $A=B=0$: $Y=\overline{A+B}$, a NOR gate.
