GATE 2026 EC – Question 19

Control Systems · Transfer Function, Block Diagram and Signal Flow Graph · 1 mark · Multiple choice

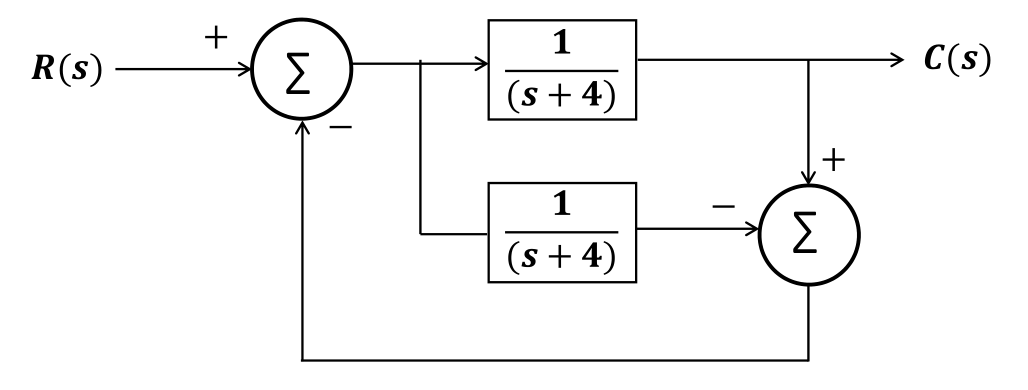

A control system is shown in the Figure. Which option represents the correct transfer function of the system?

Diagram for GATE 2026 EC question 19
  1. $\frac{1}{(s+4)^2}$
  2. $\frac{1}{s+4}$
  3. $\frac{2}{s+4}$
  4. $\frac{1}{s^2+8s+17}$

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: (B) $\frac{1}{s+4}$

Explanation

Let $e$ be the output of the first summer. Then $C=\dfrac e{s+4}$. The second summer outputs $F=C-\dfrac e{s+4}=0$ (the two terms are equal), so the feedback signal to the first summer is 0 and $e=R$.

$\dfrac CR=\dfrac1{s+4}$.
