Home › Previous year questions › GATE 2026 EC › Question 31GATE 2026 EC – Question 31 Networks, Signals and Systems · Sinusoidal Steady State Analysis · 1 mark · Numerical answer

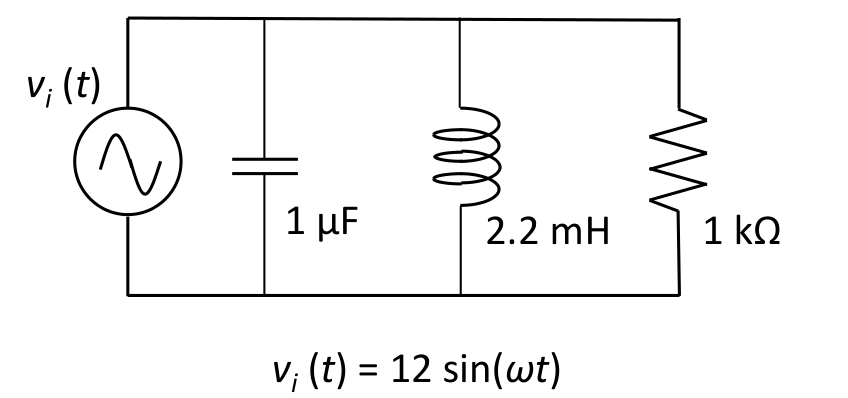

Consider the circuit shown in the Figure, where the input $v_i(t)$ is in Volt. The average power (in mW) dissipated in the load resistance of 1 kΩ at the resonant frequency is ________. (rounded off to two decimal places)
Practise this question in The GATE Grind →
Show answer and explanation Correct answer: 71.64 to 72.36
Explanation The source is ideal and connected directly across the $1\ \text{k}\Omega$ load, so the load voltage is $12\sin\omega t$ regardless of the LC part.
$P=\dfrac{V_{rms}^2}R=\dfrac{(12/\sqrt2)^2}{1000}=\dfrac{72}{1000}=0.072$ W $=72$ mW.
