GATE 2022 IN – Question 55

Measurements · Voltage current and power measurement · 2 marks · Numerical answer

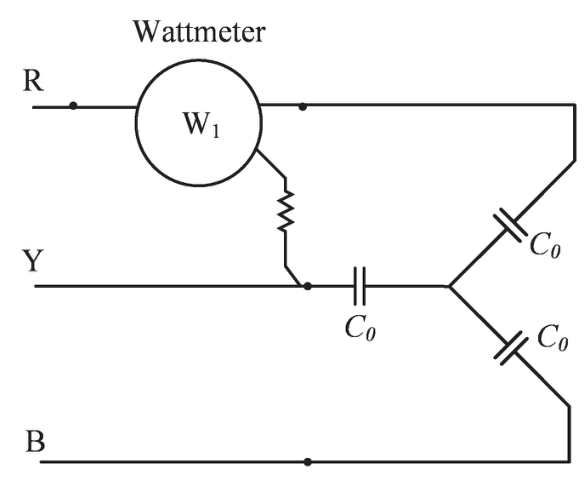

The balanced three-phase circuit shown has $C_0=8.2$ μF and line-to-line rms voltage 440 V at 50 Hz. The wattmeter reading is ______ W (two decimal places).

Diagram for GATE 2022 IN question 55

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: 141.80 to 146.20

Explanation

Balanced phase current is I=ωC0Vline/√3. The relevant line voltage and leading current have a 60° separation, giving W=VlineIcos60°=440²(2π50)(8.2×10⁻⁶)/(2√3)=**143.98 W**.
