GATE 2022 IN – Question 54

Electrical Circuits and Machines · Circuit laws and network theorems · 2 marks · Numerical answer

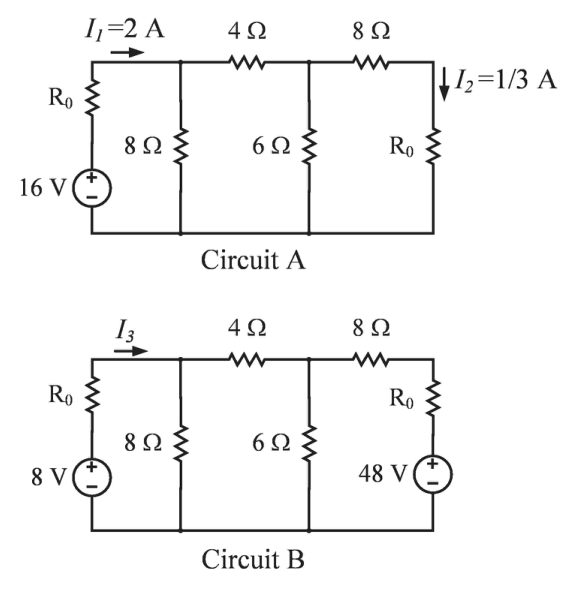

For Circuit A with shown currents $I_1,I_2$, the current $I_3$ in Circuit B is ______ A (one decimal place).

Diagram for GATE 2022 IN question 54

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: 0.0 to 0.0

Explanation

Scaling the original 16 V left source to 8 V produces 1 A in the left branch. By reciprocity, the original right response 1/3 A becomes the left response to a right-side 16 V source. The shown 48 V right source drives that branch in the opposing direction with magnitude 3×1/3=1 A. Sum **I3=0.0 A**.
