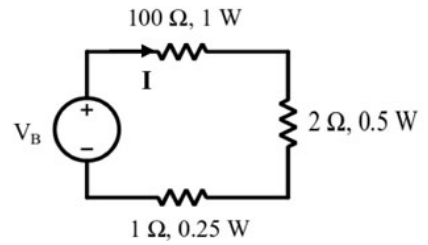

Each resistor carries the same I, with power $I^2R$. Their current limits are $\sqrt{1/100}=0.1$ A, $\sqrt{0.5/2}=0.5$ A and $\sqrt{0.25/1}=0.5$ A. The smallest limit governs the series circuit. Thus I must not exceed 0.1 A, option C.
