GATE 2022 IN – Question 56

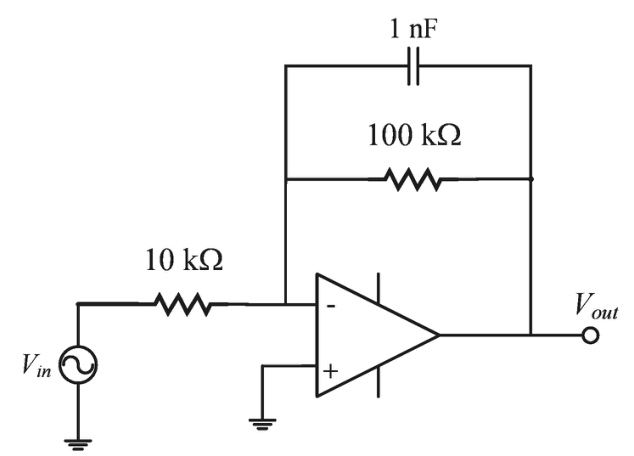

The circuit shown is driven by a sinusoidal input voltage, 𝑉, resulting in the output voltage, 𝑉௨௧. The frequency (in kilohertz) at which the voltage gain is 0 dB is ________ (round off to two decimal places)
Practise this question in The GATE Grind →
Show answer and explanation
Correct answer: 15.80 to 16.00
Explanation
H=−10/(1+jωRfC), with RfC=100 μs. Unity magnitude requires 1+(ωRfC)²=100.
Therefore f=√99/(2π×100 μs)=**15.84 kHz**.
