GATE 2022 IN – Question 58

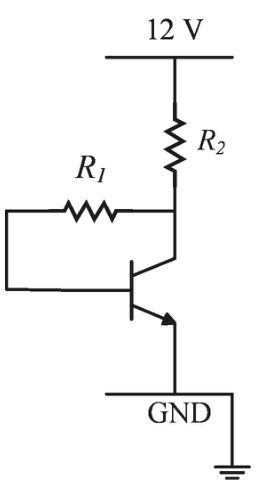

In the circuit shown, $R_1=100$ k$\Omega$ and $R_2=1$ k$\Omega$. The npn BJT has base–emitter voltage 0.7 V and collector–emitter voltage 5.2 V. Its current gain $\beta$ is ______ (two decimal places).
Practise this question in The GATE Grind →
Show answer and explanation
Correct answer: 148.00 to 152.00
Explanation
Collector voltage is 5.2 V, so IB=(5.2−0.7)/100k=45 μA. The 1 kΩ supply resistor carries IC+IB=(12−5.2)/1k=6.8 mA.
Thus IC=6.755 mA and β=6.755/0.045=**150.11**.
