GATE 2022 MT – Question 21

Manufacturing Processes · Welding and joining · 1 mark · Multiple choice

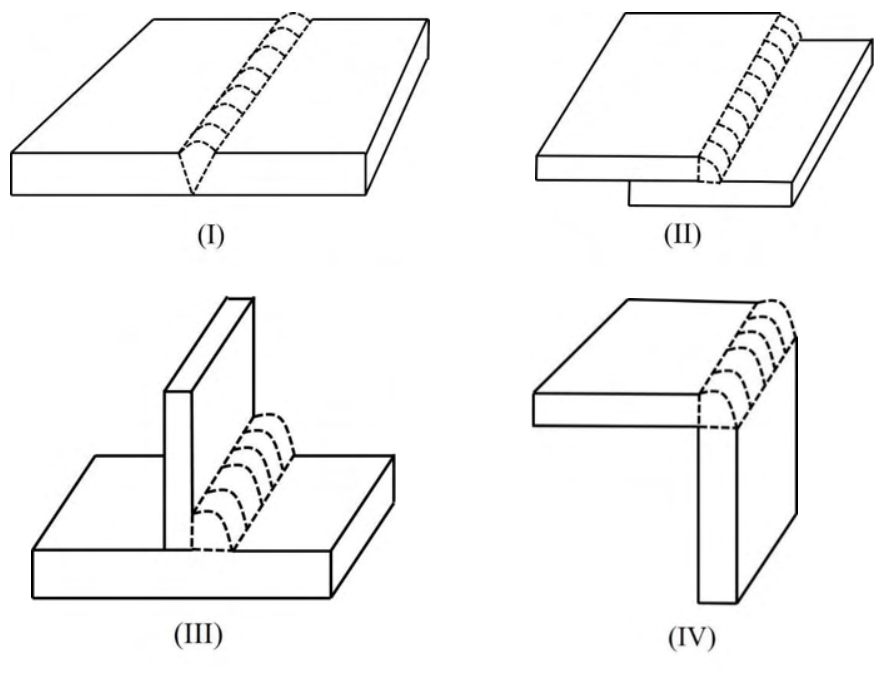

Which one of the following figures illustrates a lap joint with fillet weld?

Diagram for GATE 2022 MT question 21
  1. I
  2. II
  3. III
  4. IV

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: (B) II

Explanation

A lap joint overlaps two parallel plates, with weld metal deposited at the exposed edge. Diagram II shows that geometry; I is a butt joint and III a T joint.

Hence **II, B**.
