GATE 2022 MT – Question 45

Transport Phenomena and Rate Processes · Fluid flow and momentum transfer · 2 marks · Multiple select

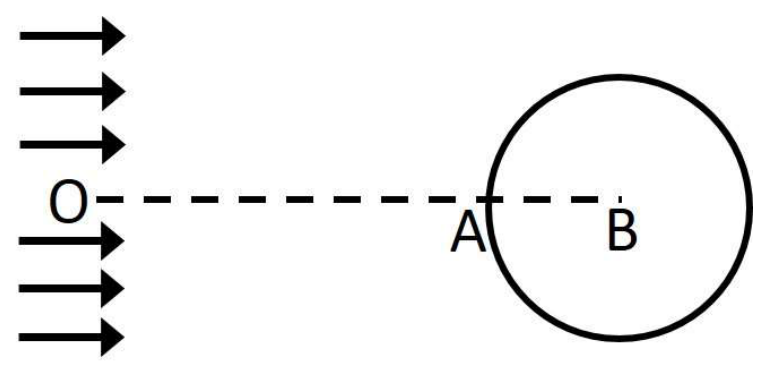

A fixed nonrotating smooth sphere is in a horizontal, slow, steady inviscid incompressible stream of density $\rho$. Far-field flow near O is fully developed, as shown. B is the sphere centre; line OAB intersects its surface at A. Select all true statements.

Diagram for GATE 2022 MT question 45
  1. Fluid velocity at A is zero
  2. Pressure at A exceeds that at O by $\rho v^2/2$, where $v$ is velocity at O
  3. Fluid moving precisely along OA turns perpendicular to OA to circumvent the sphere
  4. Flow on each side of the central streamline OA is deflected around the sphere

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: (A) Fluid velocity at A is zero; (B) Pressure at A exceeds that at O by $\rho v^2/2$, where $v$ is velocity at O; (D) Flow on each side of the central streamline OA is deflected around the sphere

Explanation

A is the upstream stagnation point, so its velocity is zero. Bernoulli between O and A gives $p_A-p_O=\rho v^2/2$. Adjacent streamlines deflect around the sphere. The exact central streamline ends at stagnation and does not make a finite-speed perpendicular turn. Correct choices: **A, B, D**.
