GATE 2016 CE (CE2) – Question 26

Fluid Mechanics · Properties of fluids, fluid statics · 1 mark · Multiple choice

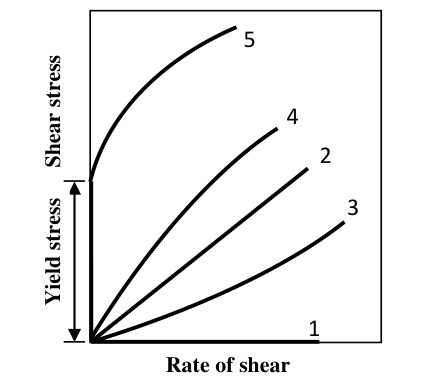

Match fluid types P Newtonian, Q pseudoplastic, R plastic, S dilatant with curves 1–5 in the shear-stress versus shear-rate diagram.

Diagram for GATE 2016 CE (CE2) question 26
  1. P-2, Q-4, R-1, S-5
  2. P-2, Q-5, R-4, S-1
  3. P-2, Q-4, R-5, S-3
  4. P-2, Q-1, R-3, S-4

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: (C) P-2, Q-4, R-5, S-3

Explanation

Newtonian fluid has a straight stress–shear-rate line through the origin(curve2). Pseudoplastic fluid is shear-thinning(curve4), while dilatant fluid is shear-thickening(curve3). The plastic-fluid curve5 has a nonzero yield-stress intercept. Thus P2,Q4,R5,S3 gives **C**.
