GATE 2014 EC (EC2) – Question 64

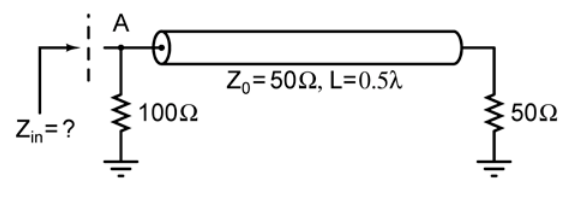

For the transmission line shown, find impedance Zin (Ω) between node A and ground.
Practise this question in The GATE Grind →
Show answer and explanation
Correct answer: 32.99 to 34.01
Explanation
The50Ωlossless line is terminated in50Ω, so its input impedance is50Ω at any length; the half-wave length also repeats the load directly. At node A this is in parallel with the separate100Ωresistor. Thus Zin=50∥100=5000/150=**33.3333Ω**.
