GATE 2014 EC (EC3) – Question 43

Networks, Signals and Systems · Two-Port Networks and Wye-Delta Transformation · 2 marks · Numerical answer

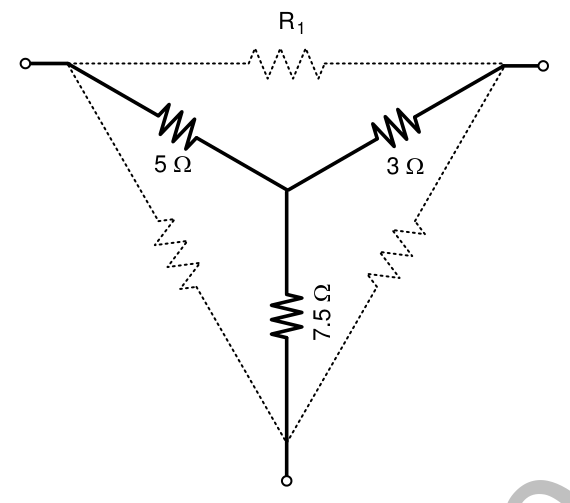

For the Y-network shown, find R₁ (Ω) in the equivalent Δ-network.

Diagram for GATE 2014 EC (EC3) question 43

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: 9 to 11

Explanation

For star arms5Ω,3Ω,7.5Ω, the delta arm between the first two terminals is R1=5+3+(5×3)/7.5. Thus R1=8+2=**10Ω**. The product term is divided by the opposite star arm, not by one adjacent to R1.
