GATE 2026 EC – Question 51
Networks, Signals and Systems · Two-Port Networks and Wye-Delta Transformation · 2 marks · Multiple choice

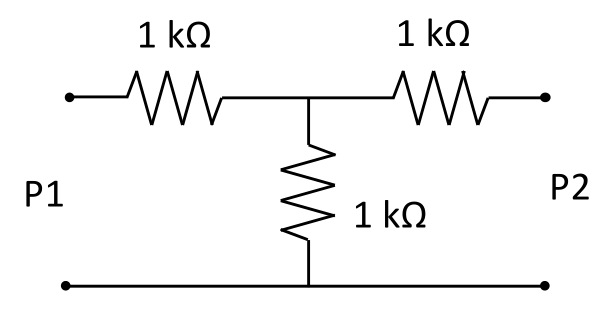

Consider the two-port network as shown in the Figure. Which of the following options provides the correct set of values of A, B, C and D parameters?

- A = 1/2, B = 3×10³ Ω, C = 10⁻³ Ω⁻¹, D = 1/2
- A = 2, B = 3 Ω, C = 1 Ω⁻¹, D = 2
- A = 2, B = 6×10³ Ω, C = 2×10⁻³ Ω⁻¹, D = 2
- A = 2, B = 3×10³ Ω, C = 10⁻³ Ω⁻¹, D = 2
Practise this question in The GATE Grind →
Show answer and explanation
Correct answer: (D) A = 2, B = 3×10³ Ω, C = 10⁻³ Ω⁻¹, D = 2
Explanation
For a T-network with series arms $Z_1=Z_2=1\ \text{k}\Omega$ and shunt arm $Z_3=1\ \text{k}\Omega$:
- $A=1+\dfrac{Z_1}{Z_3}=2$
- $B=Z_1+Z_2+\dfrac{Z_1Z_2}{Z_3}=3\ \text{k}\Omega$
- $C=\dfrac1{Z_3}=10^{-3}\ \Omega^{-1}$
- $D=1+\dfrac{Z_2}{Z_3}=2$
