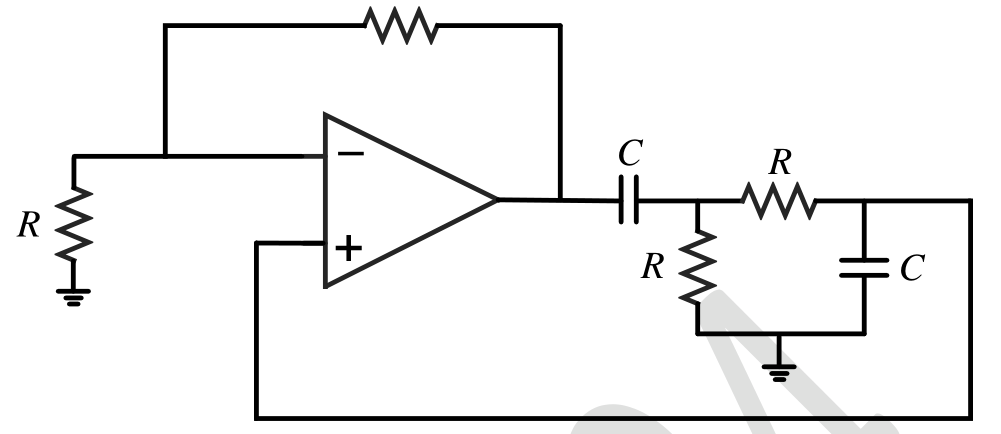

In the circuit below, the opamp is ideal.
If the circuit is to show sustained oscillations, the respective values of $R_1$ and the corresponding frequency of oscillation are ______.
$29R$ and $1/(2\pi\sqrt6RC)$ $2R$ and $1/(2\pi RC)$ $29R$ and $1/(2\pi RC)$ $2R$ and $1/(2\pi\sqrt6RC)$ Practise this question in The GATE Grind →
Show answer and explanation Correct answer: (B) $2R$ and $1/(2\pi RC)$
Explanation This is a Wien-bridge type oscillator. The feedback network from the output to the non-inverting input has transfer function $\beta(s)=\dfrac{sRC}{1+3sRC+(sRC)^2}$. At $\omega=1/RC$ it equals $\dfrac{j}{3j}=\dfrac13$ with zero phase. The Barkhausen condition needs $A\beta=1$, so the non-inverting gain $A=1+R_1/R=3$ and $R_1=2R$. The frequency is $f=\dfrac{1}{2\pi RC}$.
