GATE 2014 EE (EE1) – Question 16

Electric Circuits · Network Elements: Ideal voltage and current sources, dependent sources, R, L, C, M elements · 1 mark · Numerical answer

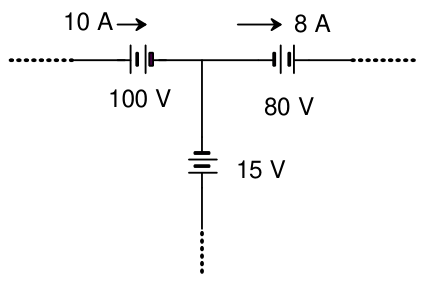

The three elements shown form part of a circuit. Find total power absorbed (W).

Diagram for GATE 2014 EE (EE1) question 16

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: 330 to 330

Explanation

KCL at the junction gives downward current10−8=2A. Use the long battery plates as positive terminals:the100Velement absorbs100×10=1000W, while the80Velement delivers80×8=640W and the15Velement delivers15×2=30W. Net absorbed power=1000−640−30=**330W**.
