GATE 2014 EE (EE2) – Question 29

Electrical and Electronic Measurements · Measurement of voltage, current, power, energy and power factor · 1 mark · Numerical answer

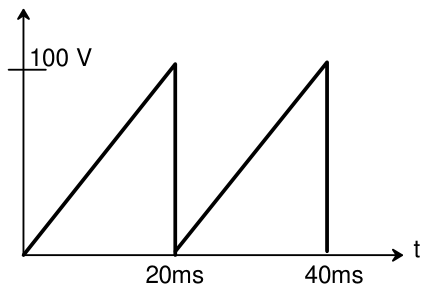

The sawtooth shown drives a moving-iron voltmeter. Find its approximate reading (V).

Diagram for GATE 2014 EE (EE2) question 29

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: 56 to 59

Explanation

A moving-iron instrument responds approximately to mean-square voltage and is calibrated in rms units. For a linear ramp from0to100over period T,Vrms²=(1/T)∫0^T(100t/T)²dt=10000/3. Hence its reading is **100/√3≈57.735V**,not the50Vaverage.
