GATE 2023 EC – Question 41

Control Systems · Transient and Steady-State Analysis of LTI Systems · 2 marks · Multiple choice

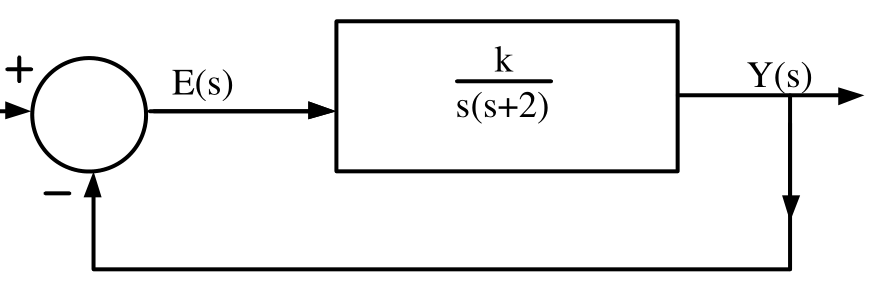

A closed loop system is shown in the figure where $k>0$ and $\alpha>0$. The steady state error due to a ramp input ($R(s)=\alpha/s^2$) is given by

Diagram for GATE 2023 EC question 41
  1. $\dfrac{2\alpha}{k}$
  2. $\dfrac\alpha k$
  3. $\dfrac\alpha{2k}$
  4. $\dfrac\alpha{4k}$

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: (A) $\dfrac{2\alpha}{k}$

Explanation

The open-loop transfer function is $\dfrac k{s(s+2)}$, a type-1 system (one integrator).

Velocity error constant: $K_v=\lim_{s\to0}s\cdot\dfrac k{s(s+2)}=\dfrac k2$.

For a ramp of slope $\alpha$, the steady-state error is $e_{ss}=\dfrac\alpha{K_v}=\dfrac{2\alpha}k$.
