Home › Previous year questions › GATE 2025 PI › Question 40GATE 2025 PI – Question 40 Manufacturing Processes II · Computer Integrated Manufacturing · 2 marks · Multiple choice

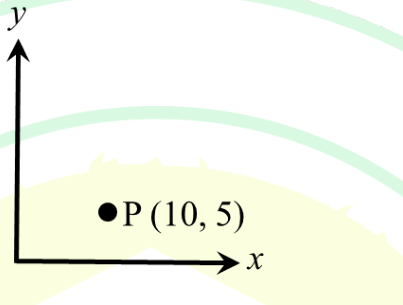

A CNC vertical mill cuts a straight XY slot from P = (10,5) mm, shown in the figure. Slot slope dy/dx = 1.25 and X feed is 120 mm/min. Find the cutter position after 20 s.
(50,55) (60,50) (60,48) (100,80) Practise this question in The GATE Grind →
Show answer and explanation Correct answer: (A) (50,55)
Explanation Time is 1/3 minute, so $\Delta x=120/3=40$ mm. The slope gives $\Delta y=1.25(40)=50$ mm. Adding the initial coordinates gives **(50,55), A**.
