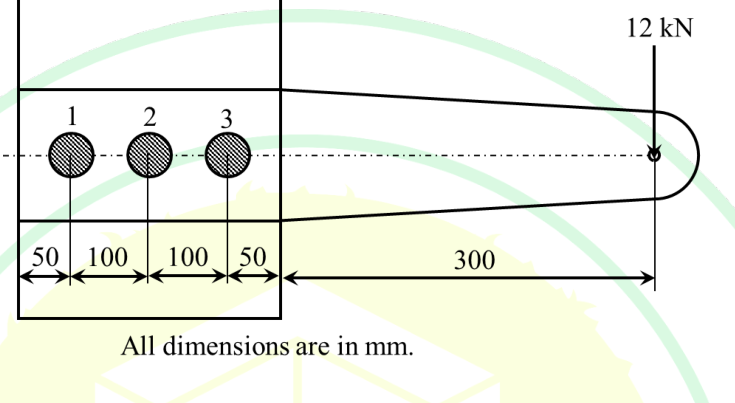

A plate is attached to a channel with three identical carbon-steel bolts as shown. Permissible shear yield strength is 400 N/mm². The plate carries 12 kN; neglect plate weight. Find resultant shear on bolt 2 (integer N).
Bolt 2 lies at the bolt-group centroid. Direct load shares equally among the three bolts: 12000/3 = 4000 N each. Eccentric load also creates a moment, but its additional bolt shear is proportional to distance from the centroid and is zero for bolt 2. Hence its resultant is **4000 N**.
