Home › Previous year questions › GATE 2021 PI › Question 23GATE 2021 PI – Question 23 General Engineering · Applied Mechanics · 1 mark · Multiple choice

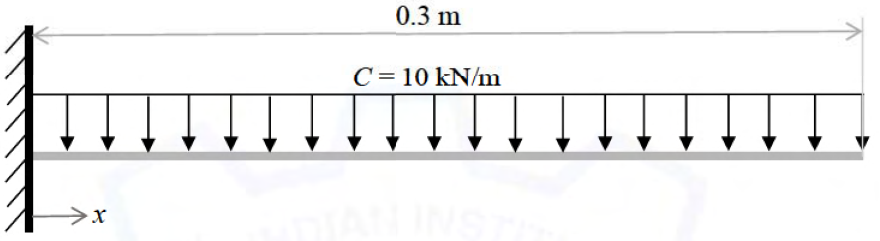

A 0.3 m cantilever carries UDL C = 10 kN/m over its full length, as shown. Flexural rigidity is 5000 N·m². Neglect self-weight. Find curvature magnitude at the fixed end in m⁻¹.
1.10 0.02 0.09 0.05 Practise this question in The GATE Grind →
Show answer and explanation Correct answer: (C) 0.09
Explanation Fixed-end bending moment magnitude is $M=wL^2/2=10000(0.3)^2/2=450$ N·m. Beam curvature is M/EI = 450/5000 = **0.09 m⁻¹, C**.
