GATE 2025 EE – Question 39

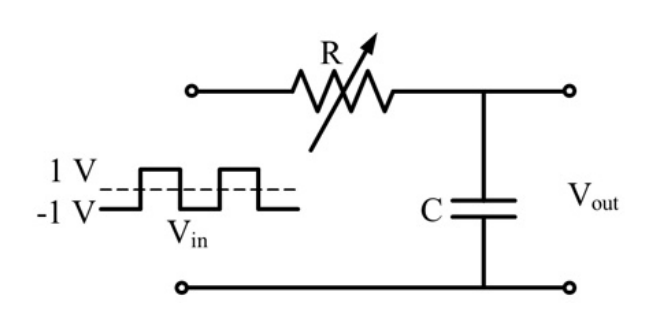

In the circuit shown below, if the values of R and C are very large, the form of the output voltage for a very high frequency square wave input, is best represented by

Practise this question in The GATE Grind →
Show answer and explanation
Correct answer: (C) Plot (C)
Explanation
For a very large time constant $RC$ compared with the period of the input, the RC network acts as an integrator. The output is the integral of the square wave: a triangular wave (slightly curved because of the exponentials) with a very small amplitude centred on zero, much smaller than the ±1 V input. That is plot (C); plot (A) would need a triangle as large as the input, and plot (B) is an unfiltered square wave.
