GATE 2024 EE – Question 12
Electric Circuits · Network solution methods: KCL, KVL, Node and Mesh analysis · 1 mark · Multiple choice

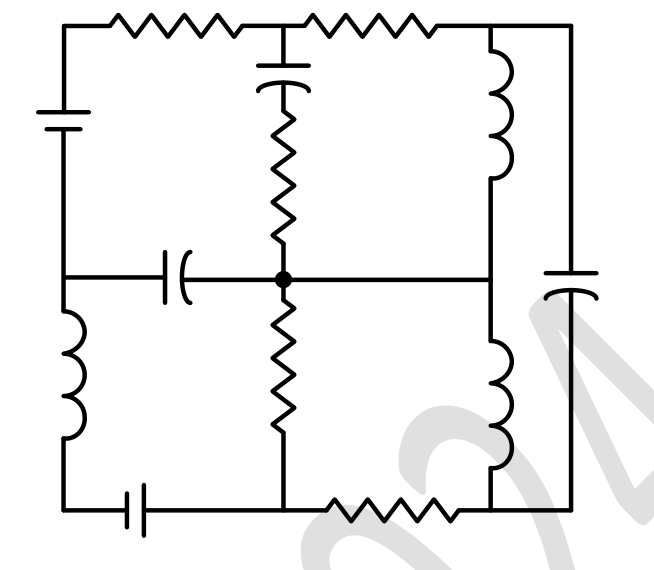

The number of junctions in the circuit is

- 6
- 7
- 8
- 9
Practise this question in The GATE Grind →
Show answer and explanation
Correct answer: (B) 7
Explanation
A junction is a node where three or more elements meet. Counting the distinct junctions in the figure gives 7.
