GATE 2024 EE – Question 61

Analog and Digital Electronics · Operational amplifiers: characteristics and applications · 2 marks · Numerical answer

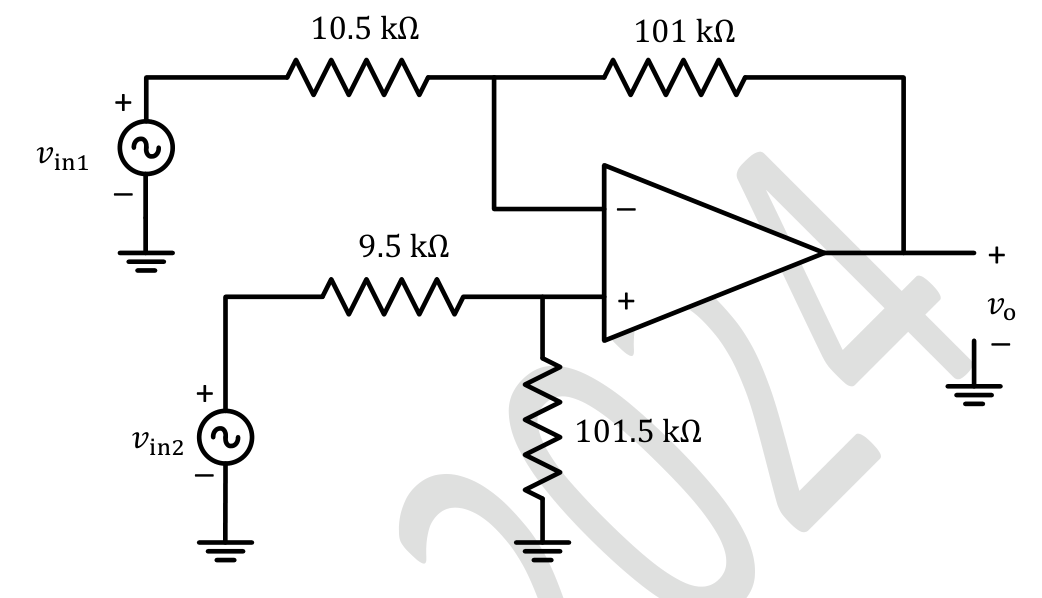

A difference amplifier is shown in the figure. Assume the op-amp to be ideal. The CMRR (in dB) of the difference amplifier is __________ (rounded off to 2 decimal places).

Diagram for GATE 2024 EE question 61

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: 40.31 to 40.71

Explanation

**1. Obtain the two input coefficients.** The noninverting input voltage is $v_+=101.5v_2/(9.5+101.5)$. Ideal negative feedback gives v₋ = v₊. KCL at the inverting node then gives $v_o=av_1+bv_2$, with $a=-101/10.5$ and $b=(1+101/10.5)(101.5/111)$.

**2. Separate differential and common-mode inputs.** Define $v_d=v_2-v_1$ and $v_c=(v_1+v_2)/2$. Substitution yields $v_o=(a+b)v_c+(b-a)v_d/2$. Hence $A_c=a+b$ and $A_d=(b-a)/2$.

**3. Calculate CMRR without early rounding.** The coefficients give $|A_d/A_c|\approx106.0153$. Since this is a voltage-gain ratio, $CMRR_{dB}=20\log_{10}|A_d/A_c|\approx\mathbf{40.51\ dB}$. Resistor-ratio mismatch leaves a nonzero common-mode gain even with an ideal op-amp.
