GATE 2022 EE – Question 36

Analog and Digital Electronics · Operational amplifiers: characteristics and applications · 2 marks · Multiple choice

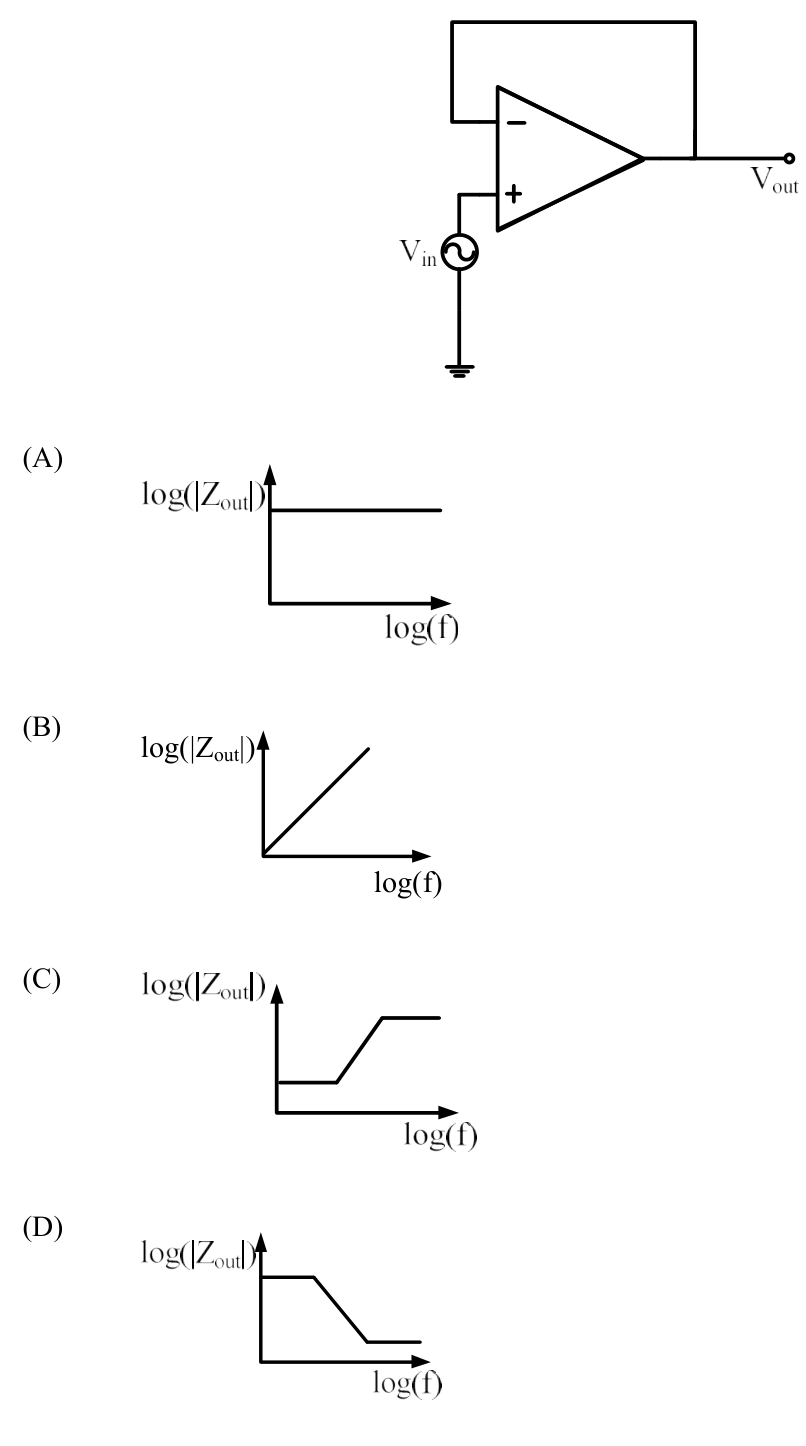

The output impedance of a non-ideal operational amplifier is denoted by $Z_{out}$. The variation in the magnitude of $Z_{out}$ with increasing frequency, $f$, in the circuit shown below, is best represented by

Diagram for GATE 2022 EE question 36
  1. Plot (A)
  2. Plot (B)
  3. Plot (C)
  4. Plot (D)

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: (C) Plot (C)

Explanation

In the voltage follower the closed-loop output impedance is $\frac{Z_o}{1+A(s)}$. At low frequency the open-loop gain $A$ is large, so the impedance is very small. As $f$ increases $A(s)$ falls, so $|Z_{out}|$ rises, and once $A$ has dropped to about 1 it flattens at the open-loop output impedance $Z_o$. This low, rising, then flat shape is plot (C).
