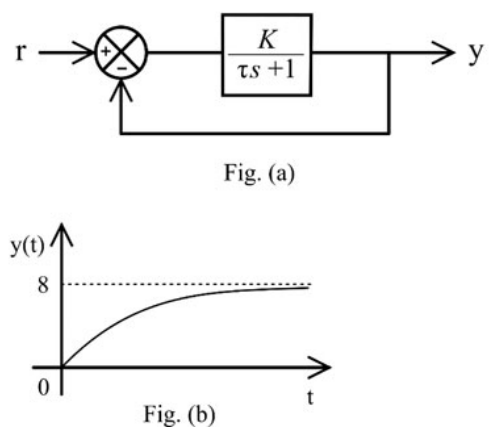

The closed-loop transfer function is $T(s)=K/(\tau s+1+K)$, with DC gain $K/(1+K)$. The observed final output for a step of height 10 is $10K/(1+K)=8$. Thus $10K=8+8K$, yielding K = 4. The time constant affects approach to the final value but is not needed for this gain.
More Feedback and transfer functions: Feedback principles, role of sensing in feedback, signal flow graphs questions
GATE 2025 IN Q27– For G(s)=1+2s-1s3+5s2+3s+22, the number of zeros in the left half of the s-plane is
GATE 2022 IN Q37– The signal-flow graph is shown. The expression for Y(s)/X(s) is .
