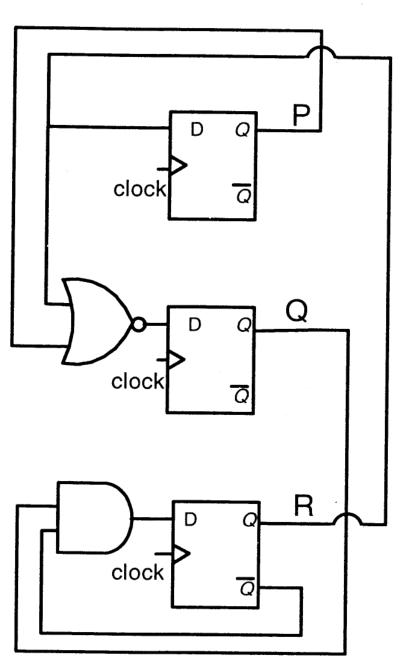

Trace the D inputs: $P^+=R$, $Q^+=\overline{P+R}$, $R^+=Q\bar R$. At PQR=010 these evaluate to 0,1,1. Synchronous D flip-flops load those values together, giving 011, D.
