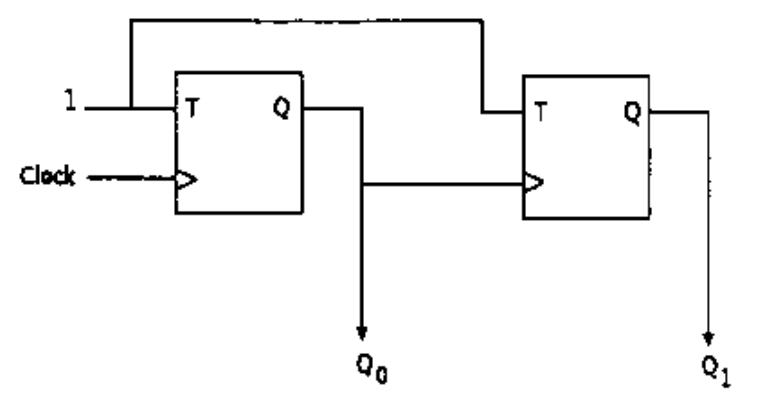

Two positive-edge-triggered T flip-flops have T=1. The external clock drives flip-flop 0, whose Q₀ output clocks flip-flop 1. Starting from Q₁Q₀=00, what is the sequence after successive external clock edges?
On the first edge Q₀ rises from zero to one, producing a rising edge at the second flip-flop, so Q₁ also toggles: 11. The next Q₀ transition is falling, leaving Q₁ unchanged: 10. The next rising Q₀ toggles Q₁ back to zero: 01. The fourth gives 00. Thus A.
