GATE 2015 EE (EE2) – Question 22

Analog and Digital Electronics · Amplifiers: biasing, equivalent circuit and frequency response · 1 mark · Numerical answer

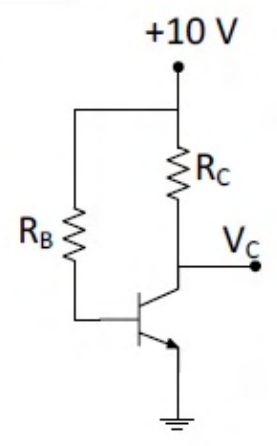

The transistor is active and initially VC=2 V. To obtain VC=4 V, RC is replaced by RC′. Find RC′/RC.

Diagram for GATE 2015 EE (EE2) question 22

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: 0.74 to 0.76

Explanation

The base bias is supplied through RB from the fixed 10 V rail. Under the constant-β active-region model, replacing the collector resistor does not change base or collector current.

Initially the collector resistor drops 10−2=8 V. Finally it must drop 10−4=6 V at the same current. Therefore RC′/RC=6/8=**0.75**, within 0.74–0.76.
