GATE 2023 EE – Question 59

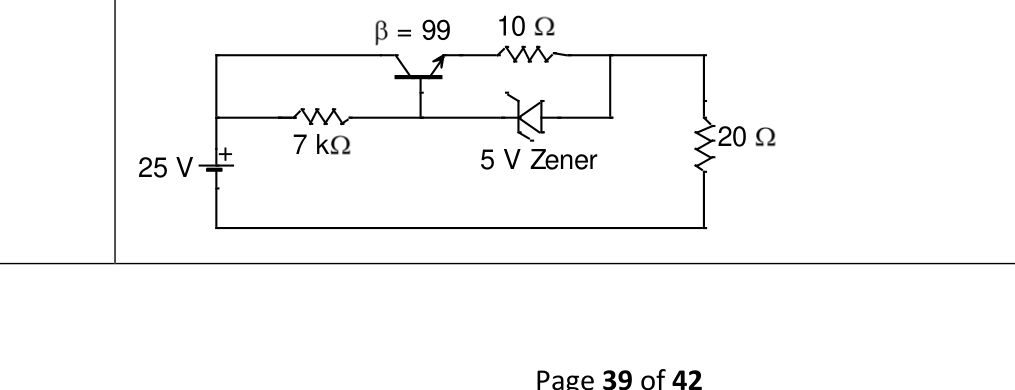

The Zener diode in circuit has a breakdown voltage of 5 V. The current gain $\beta$ of the transistor in the active region is 99. Ignore base-emitter voltage drop $V_{BE}$. The current through the 20 Ω resistance in milliamperes is ________ (Round off to 2 decimal places).

Practise this question in The GATE Grind →
Show answer and explanation
Correct answer: 248.75 to 251.25
Explanation
The Zener holds the base at 5 V and, with $V_{BE}$ ignored, the emitter is also at 5 V. The current in the 20 Ω emitter resistor is $5/20=250$ mA. (The base current is $250/100=2.5$ mA, which the 7 kΩ resistor supplies: $(25-5)/7\text{ k}=2.86$ mA, leaving a small current in the Zener.)
