GATE 2022 EE – Question 5

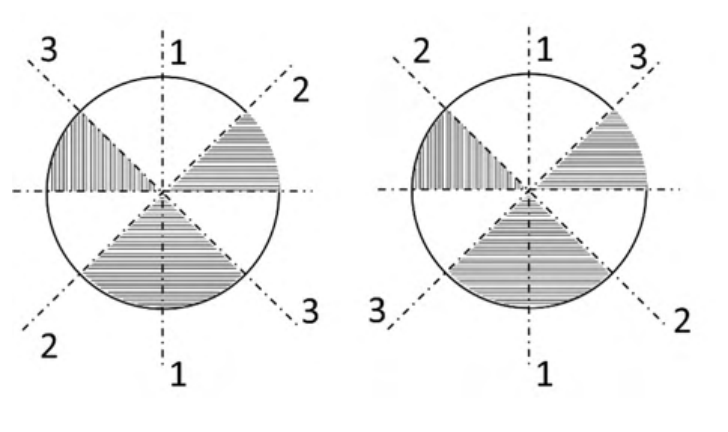

The figure below shows the front and rear view of a disc, which is shaded with identical patterns. The disc is flipped once with respect to any one of the fixed axes 1-1, 2-2 or 3-3 chosen uniformly at random.
What is the probability that the disc DOES NOT retain the same front and rear views after the flipping operation?
Practise this question in The GATE Grind →
Show answer and explanation
Correct answer: (C) $\frac23$
Explanation
Flipping about axis 1-1 (the vertical axis) brings the rear pattern forward exactly as it is drawn, and the front pattern to the back, so both views are retained. Flipping about axis 2-2 or 3-3 moves the vertically hatched wedge and the horizontally hatched wedges to positions where the original pattern does not have them, so the views change. Hence the probability is $\frac23$.
