GATE 2019 CS – Question 10

General Aptitude · Spatial Aptitude: Spatial Reasoning and Visualization · 2 marks · Multiple choice

Three of the five students allocated to a hostel put in special requests to the warden. Given the floor plan, select the allocation plan that will accommodate all their requests.

Request by X: Due to pollen allergy, I want to avoid a wing next to the garden.

Request by Y: I want to live as far from the washrooms as possible, since I am very sensitive to smell.

Request by Z: I believe in Vaastu and want to stay in the South-West wing.

The shaded rooms are already occupied. WR is washroom.

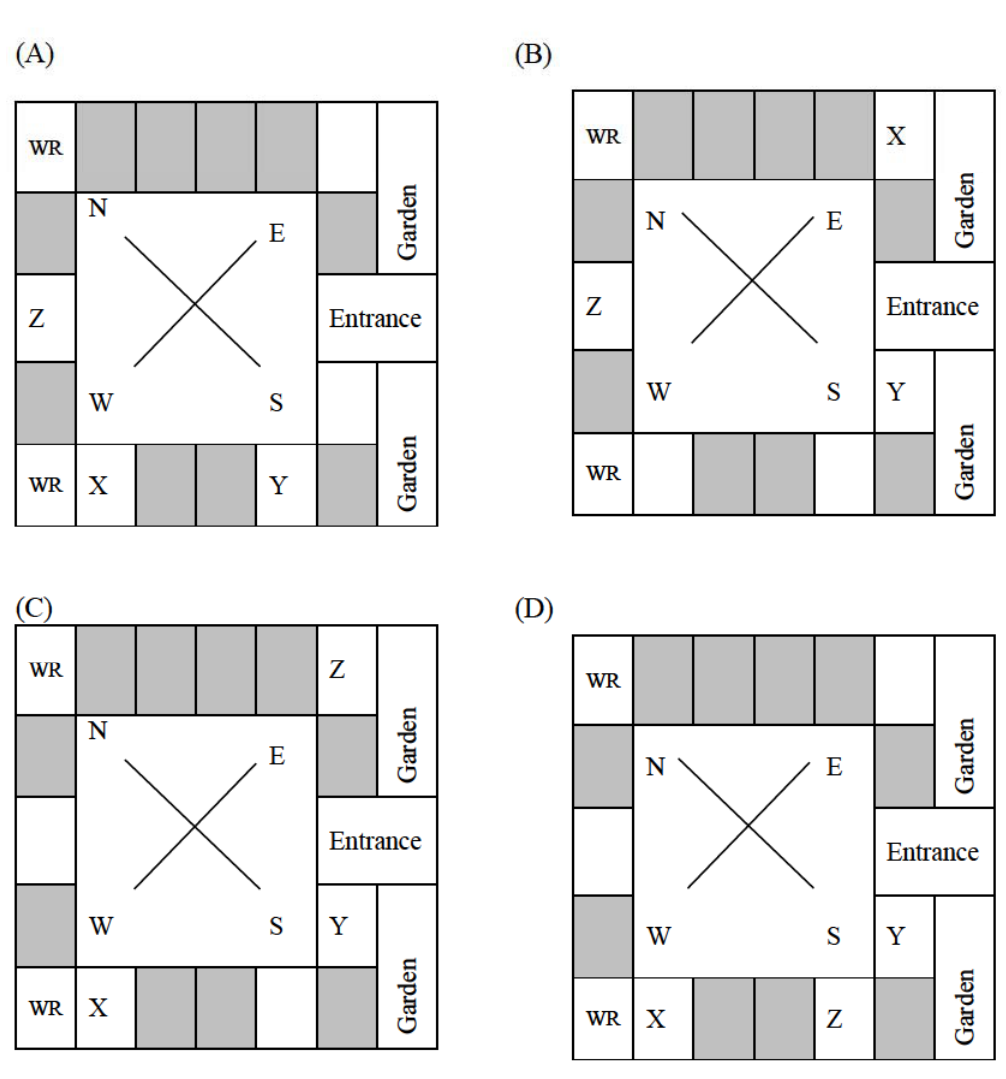

Diagram for GATE 2019 CS question 10
  1. Plan (A)
  2. Plan (B)
  3. Plan (C)
  4. Plan (D)

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: (D) Plan (D)

Explanation

Read the compass in the plan: north points toward the upper left, so the south-west wing is the bottom wing, not the left edge of the drawing. Shaded rooms cannot be reassigned.

Plan A places Z on the left wing, so it fails Z's south-west request. Plan B puts X beside the upper-right garden, contrary to X's allergy request. Plan C places Z on the top wing and also fails Z's request.

Plan D puts Z in the bottom south-west wing, X in a bottom room away from the gardens, and Y on the right-hand wing farthest from the washrooms on the left. Thus all three requests are met by **plan D**. The compass, rather than the page's usual upright orientation, determines the wing names.
