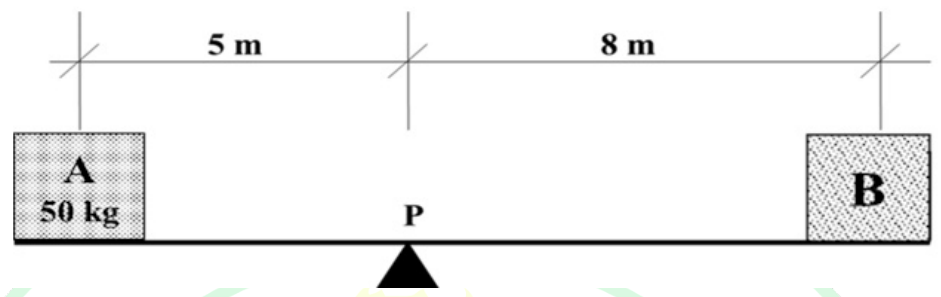

A see-saw has a 50 kg box 5 m to the left of fulcrum P and box B 8 m to the right. Find B’s mass for static equilibrium in kg.

Diagram for GATE 2025 AR — Planning question 34

50
31.25
80
61.25

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: (B) 31.25

Explanation

Moment balance about P requires 50g×5=mg×8. The common gravitational acceleration cancels, giving m=250/8=31.25 kg, B. Equal masses would not balance because the lever arms differ.
