GATE 2024 AR — Architecture – Question 63

Project Management and Professional Practice · Estimation, costing and specification · 2 marks · Numerical answer

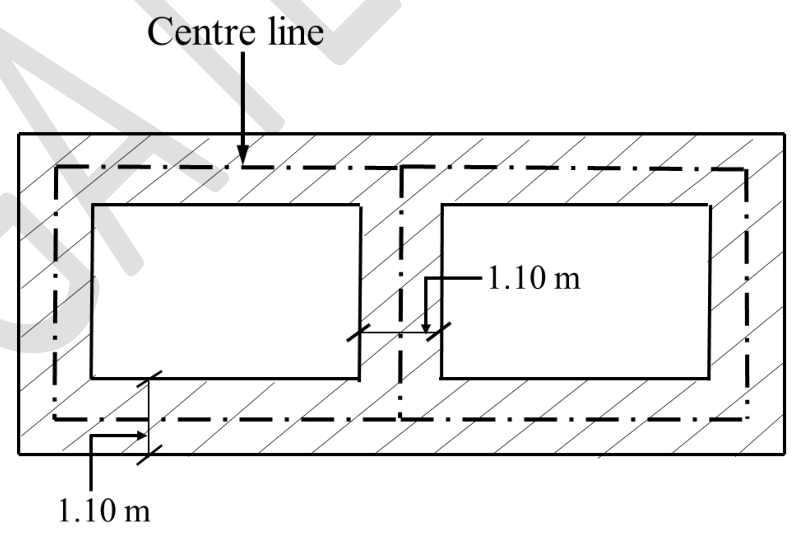

The two-room foundation excavation shown has uniform trench width 1.10 m and cumulative centreline length 41.10 m. Concrete depth is 0.30 m. Find concrete volume in m³, to two decimals.

Diagram for GATE 2024 AR — Architecture question 63

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: 13.20 to 13.20

Explanation

The central crosswall meets the perimeter at two T junctions. Deduct half the trench width at each junction from the summed centreline length:41.10−2×0.55=40.00 m. Volume is 40×1.10×0.30=13.20 m³. This prevents counting the two junction overlap areas twice.
