GATE 2024 AR — Planning – Question 53

Urban Land Use and Transportation · Traffic survey methods, Traffic flow Analysis · 1 mark · Multiple select

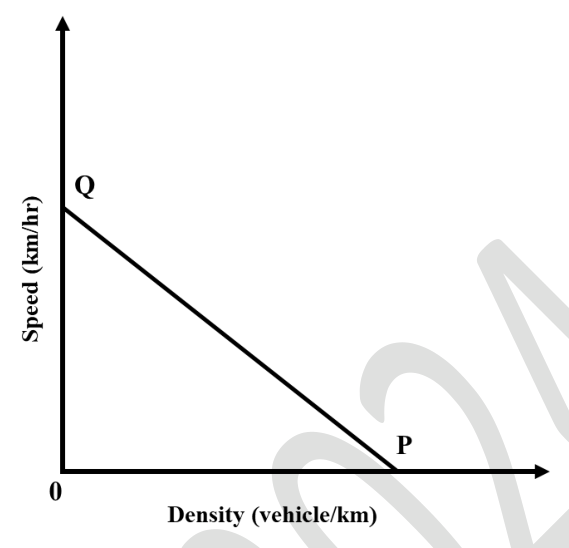

For the speed-density diagram, which statements are correct?

Diagram for GATE 2024 AR — Planning question 53

P is maximum flow.
P is jam density.
Q is free-flow space-mean speed.
Q is time-mean speed.

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: (B) P is jam density.; (C) Q is free-flow space-mean speed.

Explanation

P is the density-axis intercept where speed is zero, the jam density(B). Q is the speed-axis intercept at near-zero density, the free-flow speed in the space-mean-speed model(C). Maximum flow occurs at an interior speed-density combination, not P. Select B, C.
